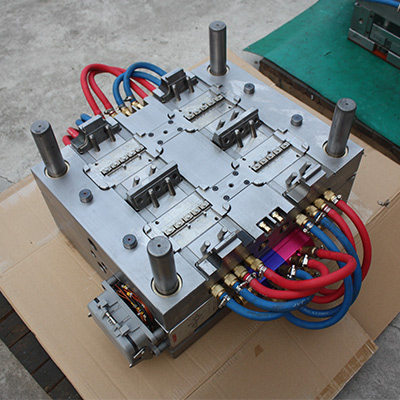

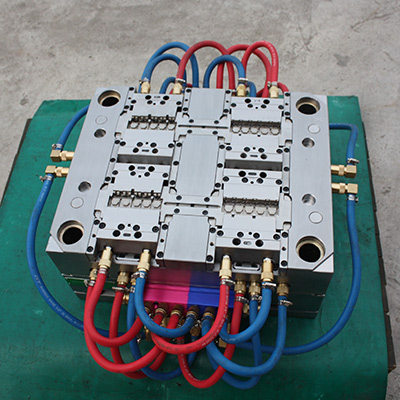

High Precision Auto Injection Mould for Fuse

Mould Name: Automotive Fuse Mould

Part Material: PPA AS4133

Product Size: 135.66X26.60X32.60mm

Product Description: Plastic Fuse Mould 32V

Mould Cavity: 4 cavities

Mould Size: 450*600*500mm

Mould Cavity Steel: insert: M340, block: 2343

Mould Injection System: 2 drops Husky hot runner w/ sub gate

Mould Ejection System: ejector pin

Mould Cycle Time: 28's

Mould Life Cycle: 1,500,000

Lead Time: 50 working days

Mould Features: complex structure, long part, difficult to control the deformation

Mold export to: America

Mould Manufacturer: HanKing Mould Engineering Ltd.

HanKing Mould produces all different kind fuse and connector protector for an international OEM company, we have a lot of experience to short the project development time.
